Product : stainless steel welded wire mesh
Material : SS316
Wire Gauge : 19#
Aperture : 3/4'' x 3/4''
Height : 64"
Length : 50'
Feature : durability and resistance to rust
Color : Light Silver
Application : For Industrial separation
Packing : Waterproof pater and platic film
Brand Name : X MESH
Model Number : X MESH-0302
Certification : ISO9001:2015
Place of Origin : Hebei P.R. China.
MOQ : 1000m2
Price : USD1.85-2.35/m2
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 85000m2/week
Delivery Time : 5-7days
Packaging Details : Wrapped with plastic film and pallet packing
Product Name |
stainless steel welded mesh |
|
material |
SUS 201,304,316,316L,310S,904L.... |
|
Aperture (inch) |
Aperture(mm) |
Wire diameter(BWG) |
1/4"X1/4" |
6.35mm x 6.35mm |
22, 23, 24 |
3/8"X3/8" |
9.52mm x 9.52mm |
19, 20, 21, 22 |
1/2"X1/2" |
12.7mm x12.7mm |
16, 17, 18, 19, 20, 21, 22, 23 |
5/8"X5/8" |
15.87mm x 15.87mm |
18, 19, 20, 21 |
3/4"X3/4" |
19.05mm x 19.05mm |
16, 17, 18, 19, 20, 21 |
1"X1/2" |
25.4mm x12.7mm |
16, 17, 18, 19, 20, 21 |
1"X1" |
25.4mm x 25.4mm |
14, 15, 16 |
1"X2" |
25.4mm x 50.8mm |
14, 15, 16 |
2"X2" |
50.8mm x 50.8mm |
12, 13, 14, 15, 16 |
Mesh Size |
Wire Gauge (BWG) |
|
Inch |
mm |
|
1/4″ x 1/4″ |
6.4mm x 6.4mm |
22, 23, 24 |
3/8″ x 3/8″ |
10.6mm x 10.6mm |
19, 20, 21, 22 |
1/2″ x 1/2″ |
12.7mm x 12.7mm |
16, 17, 18, 19, 20, 21, 22, 23 |
5/8″ x 5/8″ |
16mm x 16mm |
18, 19, 20, 21 |
3/4″ x 3/4″ |
19.1mm x 19.1mm |
16, 17, 18, 19, 20, 21 |
1″ x 1/2″ |
25.4mm x 12.7mm |
16, 17, 18, 19, 20, 21 |
1-1/2″ x 1-1/2″ |
38mm x 38mm |
14, 15, 16, 17, 18, 19 |
1″ x 2″ |
25.4mm x 50.8mm |
14, 15, 16 |
2″ x 2″ |
50.8mm x 50.8mm |
12, 13, 14 |





|
|

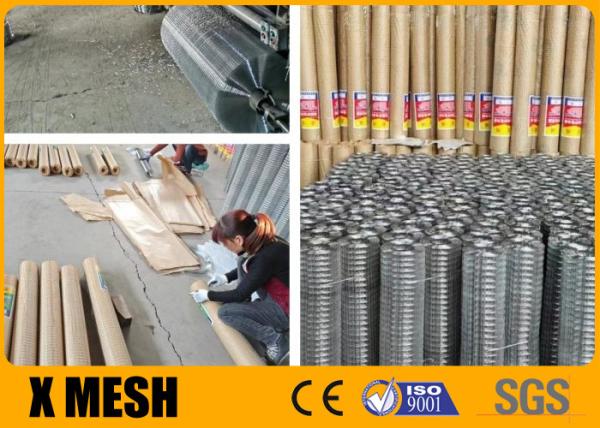

3/4 Inch Aperture Stainless Steel Welded Mesh 19 Gauge Images |
