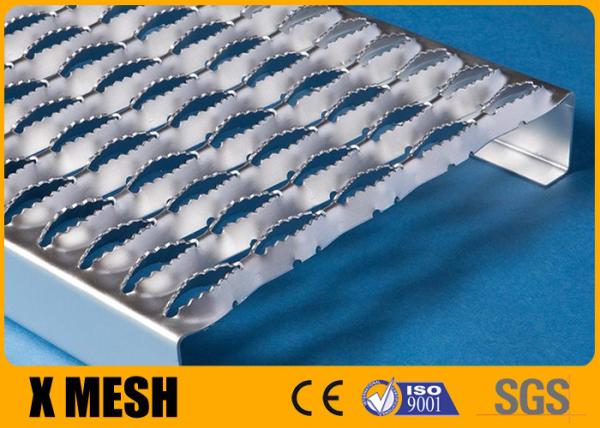

Crocodile Lips Grtp Galvanized Grip Strut Anti Skid Plate 180mm Width ASTM A269 Standard

Name: Crocodile Lips Grtp Galvanized Grip Strut Anti Skid Plate 180mm Width ASTM A269 Standard
Brand: X MESH
Price: 8.5 USD

Wholesale Crocodile Lips Grtp Galvanized Grip Strut Anti Skid Plate 180mm Width ASTM A269 Standard from china suppliers

Brand Name : X MESH

Model Number : X MESH-Anti Slip Tread PlatesA04

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 200pcs

Price : USD8.5-25.5/pc

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 8500pcs/week

Delivery Time : 5-7days

Packaging Details : Wrapped with plastic film and pallet packing

Name : Anti Skid Plate

Diamond Pattern : 5 Diamonds

Width : 23-1/4"

Channel Depth : 2"

Thickness : 12 Ga. (.080"), 10 Ga. (.100")

Standard : ASTM A213

Application : For Oil Fields

Feature : easy install & long using life

Material : Mild Steel

Packing : Pallet or Wooden Case packing

Contact Now

Crocodile Lips Grtp Galvanized Grip Strut Anti Skid Plate 180mm Width with ASTM A269 Standard

Anti Skid Plate Introduction:

Grip Strut Safety Grating plank is an excellent slip resistant material that is low in material cost, as well as installation cost. This planking, at 2" deep x 14 gauge and 4-3/4" wide (2 diamond), provides maintenance-free open design for drainage of fluids, chips, grease, mud and snow. The serrated surface grips soles securely-in all directions-in practically every place. High strength-to-weight performance is achieved through depth of section and structural design. Light and easy to handle, this helps in quick installation, that usually can be handled by one person. Available in pre-galvanized and hot rolled pickled and oiled (HRPO). Standard lengths are 10' and 12', with the ability to run up to 24' on certain sizes. Please check with your P&R representative for more information.

Name	Anti Skid Plate
Diamond Pattern	5 Diamonds
Width	23-1/4"
Channel Depth	2"
Thickness	12 Ga. (.080"), 10 Ga. (.100")
Standard	ASTM A213
Application	For Oil Fields
Feature	easy install & long using life
Material	Mild Steel
Packing	Pallet or Wooden Case packing

Anti Skid Plate Standard:

Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard

Anti Skid Plate Specification:

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
5 Diamonds	23-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

6 Diamond / 27-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
6 Diamonds	27-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

8 Diamond / 36" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
8 Diamonds	36"	1-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

Anti Skid Plate Applications:

Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.

Anti Skid Plate Feature:

1, low cost, zinc plate is cheaper compare to after hot dipped galvanized

2, easy install, but need think about carrying capacity

3, anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.

4, low maintain cost.
